Application
- For wood and metal* doors
- Suitable for exposed sea front installations

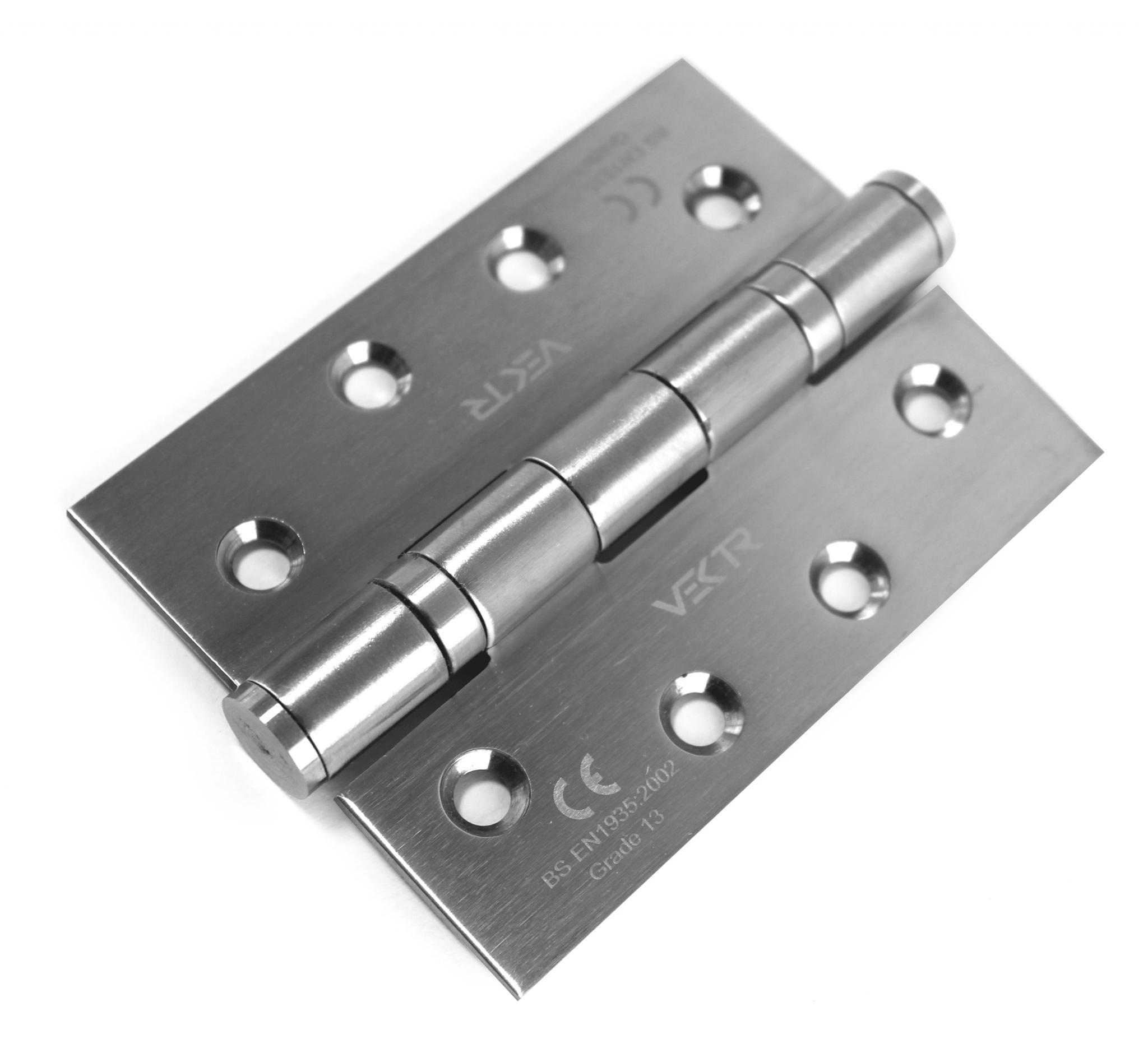

Specification
- Stainless steel AISI grade 304
- Two ball bearings, five knuckles and fixed pin
- Conforms to EN 1935:2002 class 13
Features
- Brushed stain finish as standard polished and PVD finishes available on request
- Suitable for doors upto 120 kg
| Product code | Size (A x B x C) | Finish |
| HN-24-403030-SSS | 102 x 76 x 3mm | Satin stainless steel |
| HN-24-403530-SSS | 102 x 89 x 3mm | Satin stainless steel |
| HN-24-404030-SSS | 102 x 102 x 3mm | Satin stainless steel |
| HN-24-454030-SSS | 102 x 76 x 3mm | Satin stainless steel |
| HN-24-454530-SSS | 102 x 76 x 3mm | Satin stainless steel |
| HN-24-454035-SSS** | 102 x 76 x 3mm | Satin stainless steel |
| HN-24-454535-SSS | 102 x 76 x 3mm | Satin stainless steel |
* hinges supplied with wood fixing screws unless specified
**supplied with metal fixings as standard
